PICOSECOND AND SUBNANOSECOND PULSE GENERATORS











Key features:

  • Semiconductor based technology provides high output pulse parameters, high efficiency and reliability, low jitter, long operation lifetime, excellent pulse waveform stability
  • Based on Drift Step Recovery Diodes (DSRD) and Silicon Avalanche Shapers (SAS) - new types of semiconductor devices
  • Compact and reliable design
  • kV range output pulse voltage
  • Fastest pulse rise time
  • High repetition rate

Application areas:

  • Ultra-Wide Band radars
  • Phased Antenna Arrays
  • Underground radars
  • Ultra-Wide Band communication systems
  • Signal jamming systems
  • Testing of attenuators and various electronic equipment
  • Testing of electronic devices for the electromagnetic interference immunity
  • Medical and biological applications
  • etc.
Model Description Pulse voltage Rise time FWHM Max rep.rate Info
laboratory picosecond pulse generator with adjustable pulse amplitude and internal/external triggering

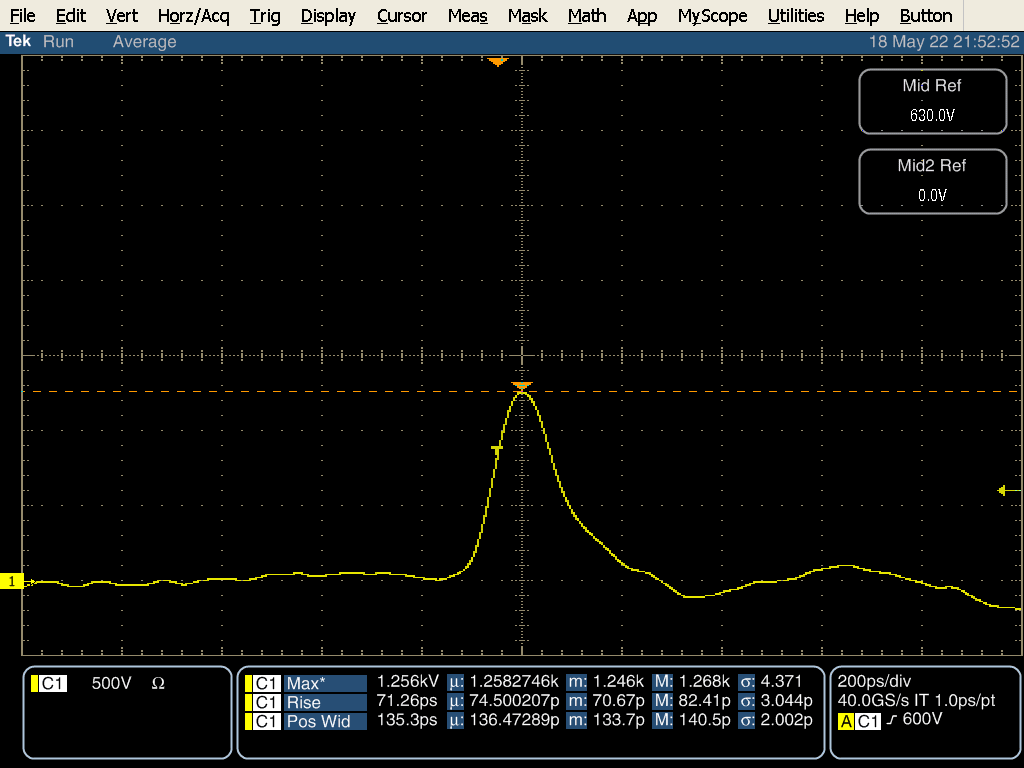

 0.4 ... 1.2 kV 70 ps 150 ps 100 kHz Data
subnanosecond pulse generator module (head) with adjustable pulse amplitude, up to 100W mean output power, stable and smooth pulse waveform without afterpulse ringing, improved cooling and pulse waveform stability, increased max repetition rate
 2 kV < 600 ps 1.5 ns 1 MHz Data User RUS
subnanosecond pulse generator module (head) specially designed for phased antenna arrays, integrated PLL provides 20ps synchronization accuracy of the modules within an array
 2 kV < 600 ps 1.5 ns 1 MHz DataUser
subnanosecond pulse generator module (head) with adjustable pulse amplitude, up to 80W mean output power, stable and smooth pulse waveform without afterpulse ringing, improved cooling and pulse waveform stability, increased max repetition rate
 3 kV < 600 ps 1.7 ns 300 kHz DataUser
subnanosecond pulse generator module (head) with adjustable pulse amplitude, up to 60W mean output power, stable and smooth pulse waveform without afterpulse ringing, improved cooling and pulse waveform stability, increased max repetition rate
 4 kV < 600 ps 1.7 ns 150 kHz DataUser
subnanosecond pulse generator module (head) with adjustable pulse amplitude, up to 50W mean output power, stable and smooth pulse waveform without afterpulse ringing, improved cooling and pulse waveform stability, increased max repetition rate

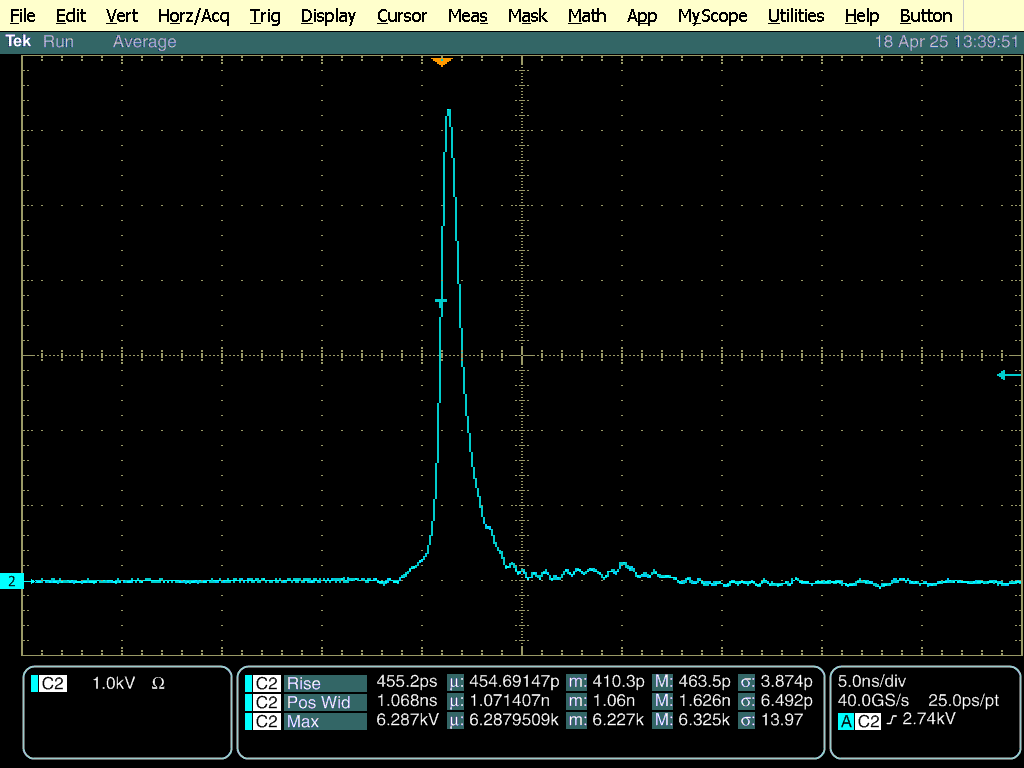

 6 kV 500 ps 1.1 ns 100 kHz DataUser
picosecond pulse generator module (head) with narrow output pulses and highest rise rate, improved cooling and pulse waveform stability, increased max repetition rate
 5 kV < 200 ps < 500 ps 25 kHz DataUser
picosecond pulse generator module (head) with narrow output pulses and highest rise rate, improved cooling and pulse waveform stability, increased max repetition rate
 6...7 kV < 150 ps < 400 ps 10 kHz Data User RUS
picosecond pulse generator module (head) specially designed for phased antenna arrays, integrated PLL provides 10ps synchronization accuracy of the modules within an array
 6...7 kV < 150 ps < 400 ps 10 kHz Data User
PPG-1.5/50
compact and reliable high voltage high frequency picosecond pulse generator with shortest rise time
 1.5 kV 70 ps 0.3 ns 50 kHz Data User
PPG-1.5/100
compact and reliable high voltage high frequency picosecond pulse generator with shortest rise time
 1.5 kV 70 ps 0.3 ns 100 kHz Data User
PPG-5/16
picosecond pulse generator head (module) with narrow output pulses and highest rise rate
 5 kV 100 ps 0.4 ns 16 kHz Data User
PPG-7/10
picosecond pulse generator head (module) with narrow output pulses and highest rise rate
 7 kV 100 ps 0.3 ns 10 kHz Data User
PPG-1/500
compact subnanosecond pulse generator module for high performance Radars and Antenna Arrays; 20W mean output power; stable and smooth output pulse waveform without afterpulse ringing
 1 kV 600 ps 2 ns 500 kHz Data User
PPG-2/1000
subnanosecond pulse generator module for high performance Radars and Antenna Arrays; 100W mean output power; stable and smooth output pulse waveform without afterpulse ringing.
 2 kV 600 ps 1.5 ns 1 MHz Data User
PPG-3/200
subnanosecond pulse generator module for high performance Radars and Antenna Arrays; 50W mean output power; stable and smooth output pulse waveform without afterpulse ringing
 3 kV 600 ps 1.7 ns 200 kHz Data User
PPG-4/100
subnanosecond pulse generator module for high performance Radars and Antenna Arrays; 50W mean output power; stable and smooth output pulse waveform without afterpulse ringing
 4 kV 600 ps 1.7 ns 100 kHz Data User

ACCESSORIES:

Model Description Info
PI-5/100

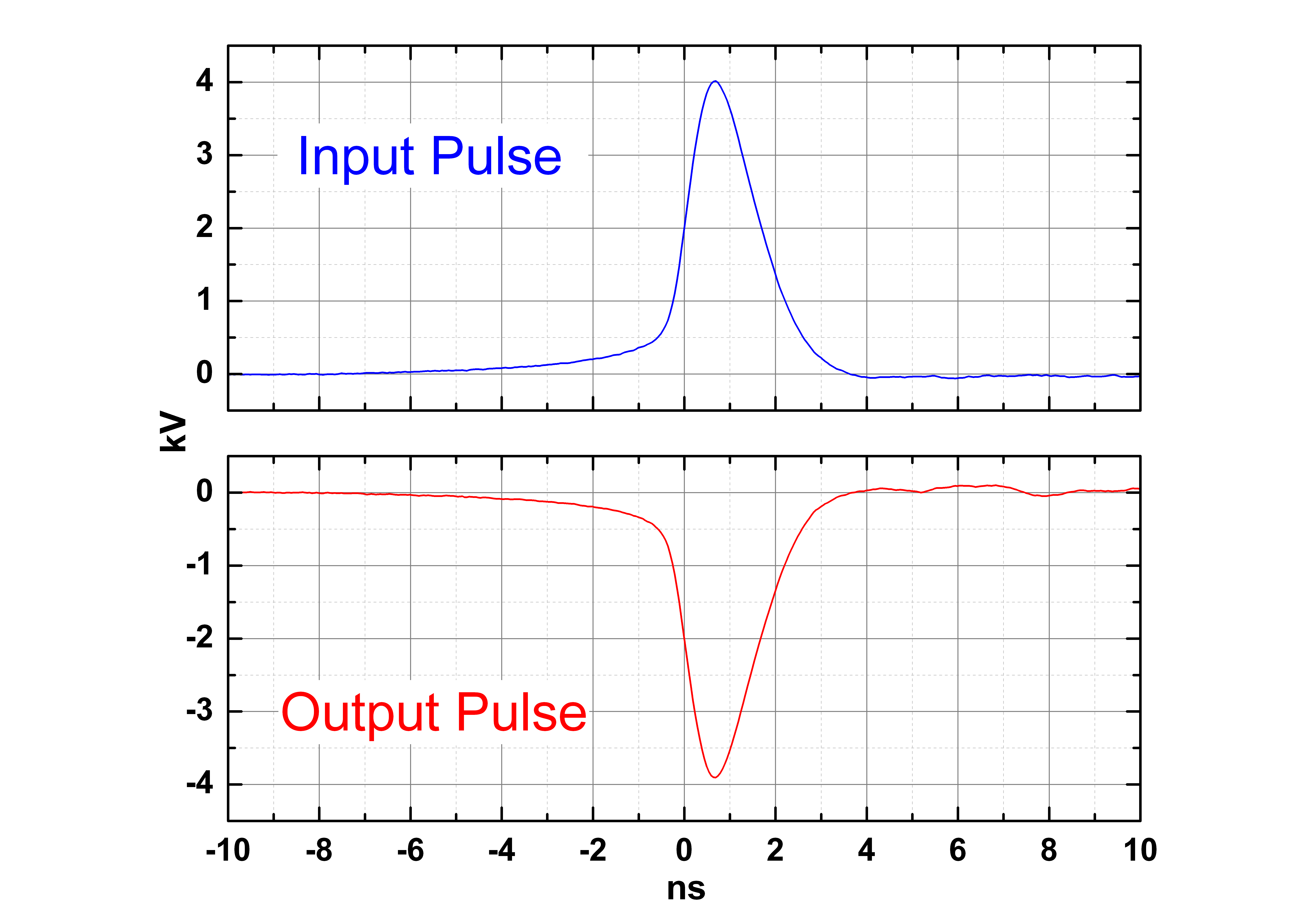

high voltage inverter for nanosecond and subnanosecond pulses
 Data User
N-SM141-N,
N-SM141-open
semirigid cable assemblies for PPG generators with both sides N-type connectors or with one N-type connector and one side open
