Microsecond pulse generators and switches

Key features:

  • Totally semiconductor based technology
  • Based on Reverse Switch on Dynistors (RSD), principally new type of semiconductor devices
  • Compact and reliable design
  • High energy efficiency
  • Output pulse voltage up to tens kV
  • Up to Mega ampere pulse current
  • Extra high pulse energy

Application areas:

  • Pumping of power lasers
  • Pulse power sources for inductive energy storage
  • Accelerators
  • Electromagnetic technology installation, such as magnetic pulse forming
  • etc.

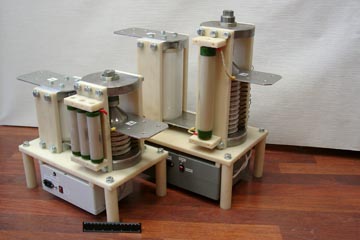

Model Max anode voltage, kV Max pulse current, kA Size, WxLxH cm Weigh, kg
PG-12/200 12 200 53x25x41 31
PG-24/200 24 200 58x25x54 46
